RFC 076: Integrating the catalogue graph into the works pipeline

Introduction

The catalogue graph has become an integral part of the catalogue pipeline, allowing us to enrich the production concepts index with additional metadata and with connections to related concepts. However, due to architectural constraints, we are currently unable to make full use of the graph. This RFC proposes modifications to catalogue pipeline architecture, addressing several shortcomings of the current architecture and allowing us to enrich the production works index in the same way as the concepts index.

Current catalogue pipeline architecture

The current architecture of the catalogue pipeline is captured in Figure 1. At a high level, it consists of several Scala services communicating via SNS/SQS, utilising Elasticsearch indexes for persistent storage, and ultimately populating the final works index. This is followed by a set of Python services (together referred to as the concepts pipeline) orchestrated via AWS Step Functions and utilising the catalogue graph to populate the concepts index.

This architecture comes with several disadvantages which need to be addressed:

  1. The catalogue graph is downstream of the final works index, which means we are unable to utilise the graph when populating the index and enrich work pages with additional information. Moreover, we are unable to fully address a long-running issue with duplicate (synonymous) concepts, causing a disparity between works displayed on theme pages (which utilise ID-based filtering and 'merge' duplicate concepts into a single page) and works displayed in filtered search (which utilises label-based filtering and does not account for duplicates).

  2. The concepts pipeline runs only once per day, which means it can take up to 24 hours for changes to source data to propagate to the concepts index. (The works index, on the other hand, is refreshed continuously.)

Figure 1: A high-level diagram of the current catalogue pipeline architecture

Proposed catalogue pipeline architecture

To address the issues outlined above, the following changes are proposed (refer to Figure 2):

  • The graph pipeline will be integrated deeper into the catalogue pipeline, extracting data from the denormalised index instead of the works snapshot.

  • A new works ingestor service will be created based on the same architecture as the concepts ingestor, utilising the catalogue graph to populate the final works index and replacing the existing Scala ingestor service.

  • The relation embedder subsystem (including the batcher and the path concatenator) will be removed. Instead, relations between works will be stored in the graph and retrieved via graph queries during ingestion into the final works index.

Figure 2: A high-level diagram of the proposed catalogue pipeline architecture

What are the benefits of removing the relation embedder?

The relation embedder subsystem consists of three Scala services which employ graph-like operations to identify work hierarchies and embed hierarchical relationships into each work document. The path concatenator service first constructs full collection paths of ancestors and descendants of each work. The batcher then collects works with shared hierarchies for optimisation purposes before passing the resulting groups to the relation embedder, which uses the collection paths to enrich each work document with information about siblings, parents, and children. A single 'flat' Elasticsearch index is utilised for persistent storage.

The denormalised nature of the Elasticsearch index leads to complexity in the Scala services. For example, whenever a new work is added to an existing hierarchy, many works belonging to the same hierarchy need to be reprocessed (including the parent of the new work and all of its siblings and descendants), recalculating ancestor/descendant paths for each work and embedding data from the new work into each respective document. Moving this functionality into the catalogue graph would allow for a significantly simpler implementation, consisting of two steps:

  1. In the catalogue graph, an edge would be created between each source identifier and its parent (if a parent exists). Performing this step for all works would lead to the creation of complete work hierarchies, replicating the functionality of the path concatenator without requiring explicit logic for constructing full collection paths.

  2. In the works ingestor, work hierarchies would be retrieved from the graph at query time and denormalised into final work documents, replicating the functionality of the relation embedder service.

How will the catalogue graph allow us to enrich the final works index?

The recently implemented 'More works' section on work pages shows similar works based on shared metadata, such as subjects or periods. At the moment, this section is populated at page load time by making several API calls from the frontend.

Populating the works index with the help of the catalogue graph will allow us to add related works to each document at index time, removing the need for the additional API calls. Furthermore, the graph will allow for more customisable queries, utilising connections between works, concepts, and external concepts.

Why not move the graph before matcher/merger?

Like the relation embedder, the matcher/merger subsystem utilises graph operations which could be offloaded on to the catalogue graph. However, doing so would imply either integrating the existing Scala services into the catalogue graph or rewriting them in Python, both of which would be involved.

This RFC suggests to keep the matcher/merger intact for now and to integrate its functionality into the catalogue graph at a later stage. This two-stage approach is more manageable and does not introduce significant overhead over a one-stage approach.

What will happen to the final images index?

The production images index is populated independently of the works index and does not involve any of the affected services.

How will this address the label vs ID-based filtering issue?

At the moment, theme pages and search pages are populated using different sets of queries. Search pages utilise label-based filtering, whereby works are filtered based on the labels of the concepts they reference. For example, filtering for all works referencing 'Florence Nightingale' as a subject does not return any works referencing 'Nightingale, Florence', even if the two labels are associated with the same Library of Congress ID. On the other hand, theme pages utilise an ID-based approach, which filters works based on Wellcome IDs of referenced concepts, regardless of how they are labelled.

The end result of this disparity is that theme pages do not always reliably link to search pages, preventing users from viewing all works associated with a given concept. In addition, inconsistencies between tag labels on work pages and titles of corresponding theme pages can be confusing for users. (Using the above example, a tag labelled 'Nightingale, Florence' might link to a theme page titled 'Florence Nightingale'.)

Having the catalogue graph available when populating the works index will resolve both issues, allowing us to replace tag labels with a single standard label consistent across all works, so that all tags linking to the 'Florence Nightingale' theme page would always be labelled 'Florence Nightingale'. Adopting this approach will also allow us to keep using label-based filtering on search pages while guaranteeing consistency between theme pages and corresponding search pages.

Why not keep the existing Scala ingestor service?

Keeping the existing Scala ingestor would mean integrating it with the catalogue graph to extract concepts and hierarchical relationships when constructing final work documents. This would involve implementing a set of Scala classes for querying the Neptune cluster, which would be time-consuming and duplicate existing Python code. It would also involve modifying the ingestor to integrate into the step function architecture outlined below (see Full reindex mode section).

On the other hand, reimplementing the ingestor in Python would allow us to reuse code from the existing concept ingestor, outweighing any time costs associated with moving the logic for creating final work documents from Scala to Python.

Incremental mode and full reindex mode

The catalogue pipeline should support two distinct modes — an incremental mode, and a full reindex mode. When operating in incremental mode, the pipeline should continuously 'listen to' changes to source works and propagate them into the production indexes as soon as possible (within tens of minutes at most). Conversely, during a full reindex, the pipeline should be able to process all works within a short timespan and ingest them into new indexes.

The works pipeline, which involves all services up to the final works index, utilises SQS to propagate individual works through the pipeline. This is ideal when running in incremental mode but suboptimal during a full reindex (since sending millions of individual messages adds overhead). On the other hand, the concepts pipeline utilises file streaming and bulk graph queries to process large numbers of concepts at once. This approach is optimised for full reindex mode but unsuitable for incremental mode.

This RFC proposes that all affected services (i.e. all services following the denormalised index) add incremental mode support in addition to the current bulk processing architecture. Bulk processing will continue to be used during a full reindex, and incremental mode will be utilised during normal operation.

Full reindex mode

Full reindex operations will be orchestrated by AWS Step Functions, using a single works pipeline state machine. This state machine will be structured in the same way as existing catalogue pipeline state machines, consisting of three steps:

  1. An extractor will be employed to retrieve work documents from the denormalised index, transform each document into nodes and edges to be stored in the graph, and stream the results into Neptune bulk load files.

  2. A set of bulk loaders will be triggered to load all nodes and edges into the catalogue graph. As part of this step, a clone of the catalogue graph will be created to keep different versions of the pipeline fully isolated.

  3. An ingestor will be used to extract all works from the catalogue graph in chunks, transform them into final work documents, and index them into Elasticsearch, with parquet files utilised for intermediate storage.

All catalogue pipeline services preceding the denormalised index will keep their current SQS-based architecture for now. When running a full reindex, the works pipeline state machine will only be started once the denormalised index has been fully populated.

Incremental mode

Incremental mode can be implemented using time windows (pull approach) or by utilising SQS messages (push approach).

A time window approach could utilise the works pipeline step function described in the previous section, scheduled to run at regular intervals (e.g. every 15 minutes). Each run of the state machine would only process works which were modified since the previous run (e.g. within the previous 15-minute window), utilising a modified time filter when querying for works from the denormalised index or from the catalogue graph.

An SQS-based approach could mirror the communication system of existing Scala services, sending SQS messages corresponding to individual modified works. Messages would be sent from the matcher/merger to the extractor, and from the extractor to the ingestor.

This RFC suggests using the time window approach due to being easier to implement, sharing the same architecture as the full reindex mode. The only drawback of this approach is that it is likely to be slower due to a pause in processing while modified works are waiting for the next scheduled run. However, this pause is relatively short (7.5 minutes on average if using 15-minute windows), and so the approach still meets the requirement of processing each work within tens of minutes.

Finally, when operating in incremental mode, the extractor does not need to populate Neptune bulk load files and can instead insert transformed nodes and edges directly into the graph. This is more efficient as the number of processed entities will almost always be small.

Catalogue graph changes

While the catalogue graph already stores works, each node includes only the information necessary for populating the concepts index. To populate the works index and replace the relation embedder with graph relationships, the structure of the graph will need to be modified. This RFC proposes that source identifiers (e.g. Sierra identifiers) will be extracted from works and stored as separate nodes. Parent/child relationships between identifiers and associations between works and identifiers will be captured as edges (see Figure 3). This is necessary to replicate the functionality of the relation embedder.

The catalogue graph will not store all data about each work, only capturing fields necessary for running graph queries. All other data will continue to be stored in the denormalised Elasticsearch index.

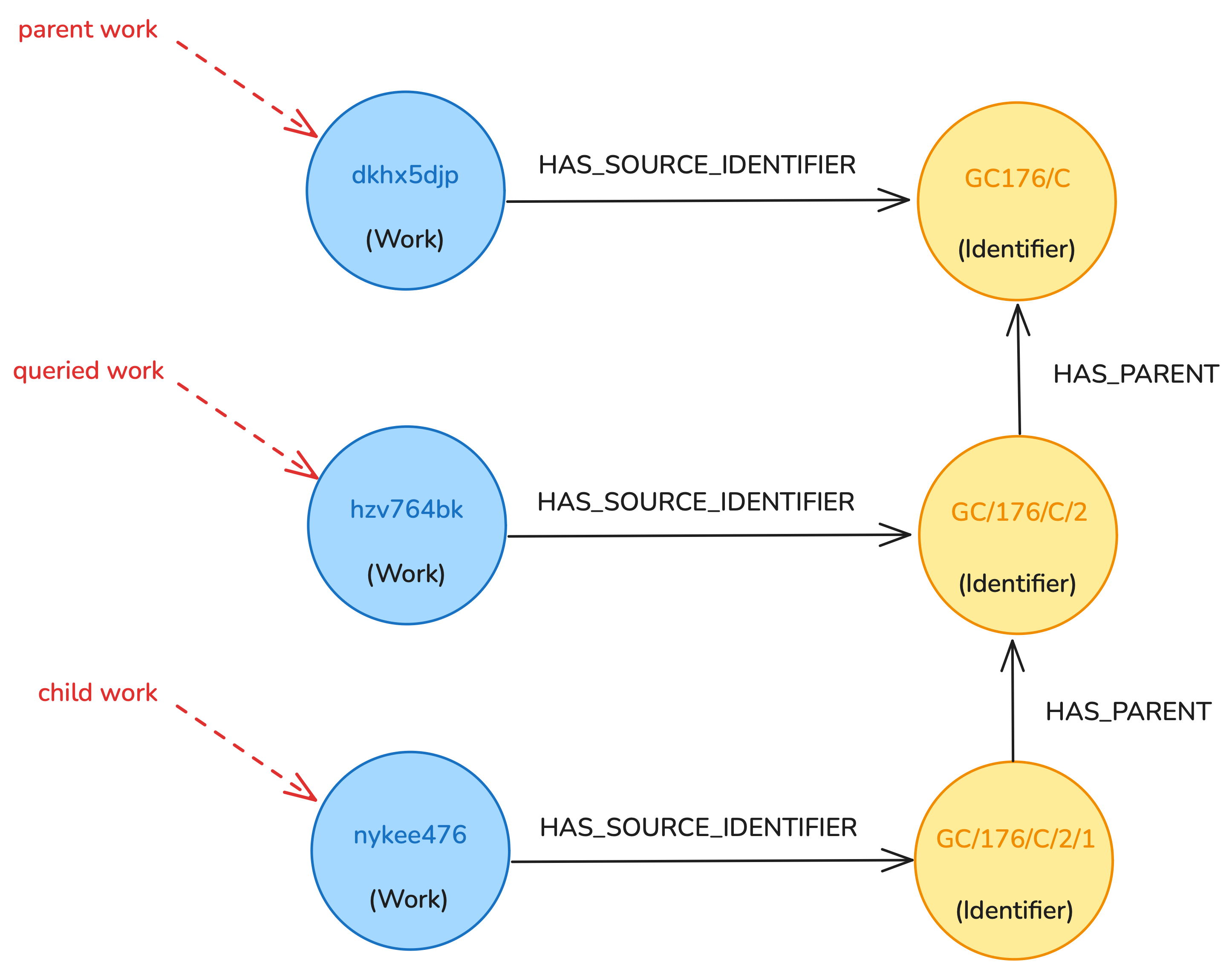

Figure 3: Hierarchical relationships between works will be captured via dedicated Identifier nodes.

How will final work documents be constructed?

At the moment, final works index documents are constructed by the Scala ingestor service, utilising the denormalised index its only data source. The new Python-based ingestor will need to utilise both the catalogue graph (extracting concepts and work hierarchies) and the denormalised index (extracting remaining work data).

When creating final documents during a full reindex, the works ingestor can either utilise the graph as its 'primary' data source (mirroring the existing concepts ingestor) and make secondary queries against the denormalised index, or the other way around (using the denormalised index as a primary source and supplementing it with catalogue graph data). Some preliminary testing has shown that the performance of both approaches is acceptable. However, this RFC suggests implementing the latter as it is simpler (avoiding the need to insert deleted and redirected works into the catalogue graph).

How do these changes affect performance?

To test the performance implications of the proposed changes, all data was bulk loaded into an experimental version of the catalogue graph. This included all 3.1 million work nodes, 5 million source identifier nodes, and all corresponding edges. Creating the necessary CSV bulk load files involved streaming all documents from the denormalised Elasticsearch index, which took approximately 25 minutes. Each bulk load took less than 5 minutes, and all 4 bulk loads together took less than 15 minutes.

Next, an experimental works ingestor was created to retrieve work data from the graph and construct the necessary Elasticsearch documents. Visible works were retrieved via a combination of three graph queries (one for retrieving work nodes, one for retrieving related source identifiers and their parent/child relationships, and one for retrieving related concepts). Together, these three queries return the necessary data to fully construct documents for indexing into the final index. The remaining 2 million works (invisible, redirected, and deleted) were retrieved using a single query (the other two queries are not required since non-visible work documents do not store parent/child relationships or concepts).

With three ingestor instances running in parallel and a batch size of 20,000 works, data to construct all 1.17 million visible documents was retrieved in approximately 20 minutes. All non-visible documents were retrieved in under 15 minutes.

These experiments show that the proposed changes would add approximately 1 hour to the total runtime of the catalogue pipeline during a full reindex. However, this does not account for time saved by removing the relation embedder. In addition, the experiments above were conducted outside of our VPC, which likely had a negative impact on performance.

Next steps

The modifications suggested in this RFC can be implemented in three steps:

  1. Modify the graph pipeline to start extracting data from the denormalised index and to populate the graph with dedicated Identifier nodes to replace the relation embedder.

  2. Rewrite the works ingestor in Python, following the same architecture as the existing concepts ingestor.

  3. Add incremental mode support to the graph pipeline and to the works and concepts ingestors.

The resulting architecture will allow us to retire the relation embedder and the Scala works ingestor, simplifying the pipeline. More importantly, it will make the catalogue graph available to the works ingestor, allowing us to start enriching work pages with data from the graph and develop a more robust related works feature, which is currently implemented on top of existing catalogue API endpoints.
